Tech specs

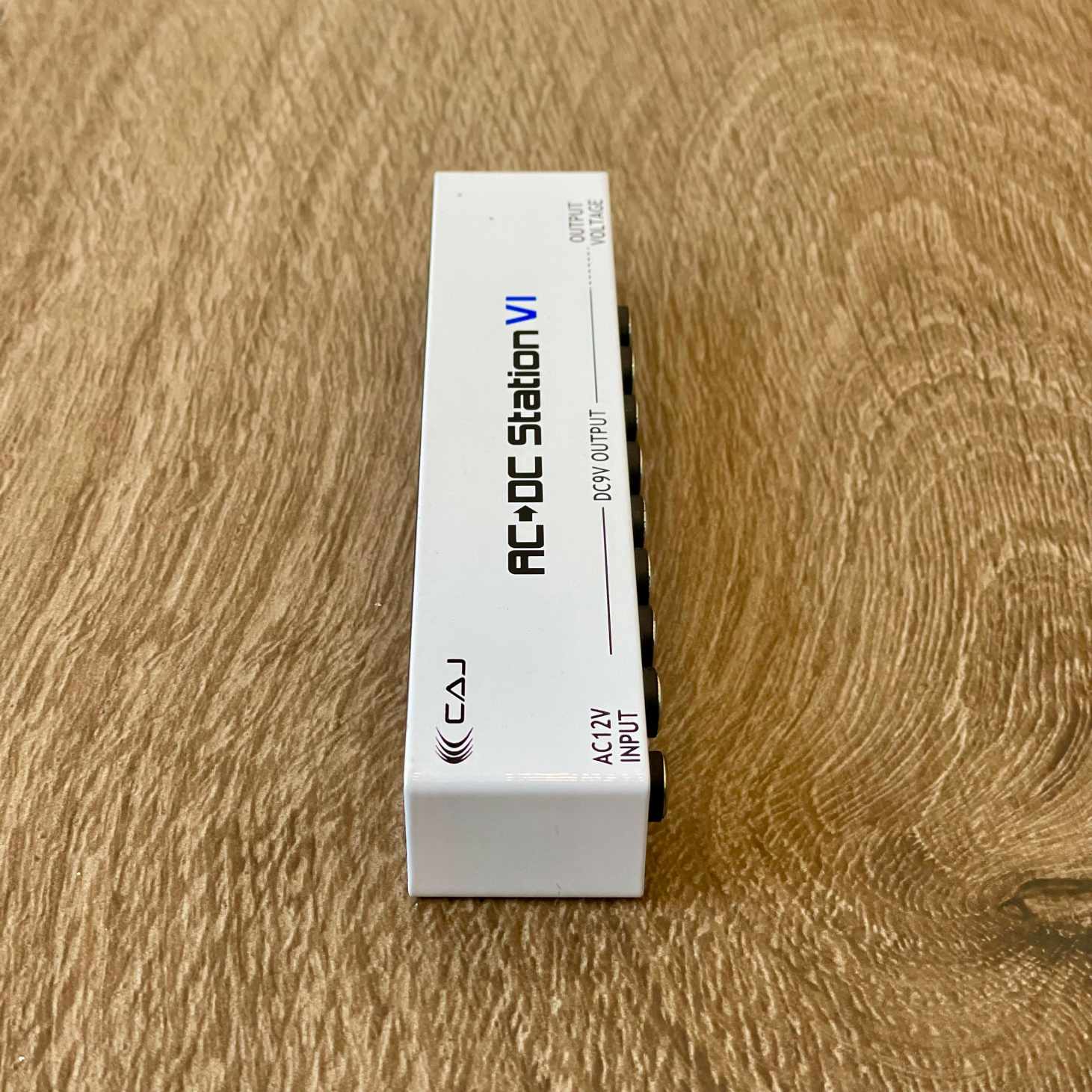

- 6th generation “VI” equipped with digital voltage meter
The CAJ AC/DC Station, which has continued to evolve since it was developed as a custom power supply exclusively for rack systems in the 1990s, has achieved further miniaturization in addition to new functions. It was released as AC/DC Station VI.
Equipped with a digital voltage meter that constantly monitors the supply voltage, downsizing is achieved by specifying 8 OUTPUTs. Furthermore, by setting the output voltage to approximately 9.65V, which is close to the initial value of a new 9V battery, the potential of the effector is maximized. - Uses extremely noiseless “linear system”
Linear system power supplies, which convert AC (alternating current) power generated by power transformers into DC (direct current), are highly efficient, compact and lightweight compared to switching systems. It is still the mainstream in the world of high-end audio because it provides a stable clean power supply with no pulse noise.
The linear method, which boasts excellent noise immunity, is consistently used in AC/DC Station - What current consumption is required for an effect board system?
How much current consumption is required to drive an effector?*Current consumption of main effectors
Analog overdrive/distortion: 4mA to 20mA
digital chorus/flanger :20mA to 25mA
Digital delay/reverb: 50mA to 60mA
MIDI compatible Digital EQ: 75mA
MIDI compatible Multifunctional digital effector with memory capability: 75mA to 200mA (Reference value) - SPECIFICATIONS
*The AC/DC Station IV, V, and VI adapters are compatible.Size: AC/DC Station VI: 167(w) x 33(d) x 23.3(h) mm
AC adapter: 52(w) x 42(d) x 64(h) mm / Cable length 1.8m (including protrusions) )
Weight: AC/DC Station VI: 235g / AC adapter: 260g
Maximum current consumption: 450mA
Connection terminal: AC12V INPUT x 1 Center pin 1.7 mm
DC9V OUTPUT x 8 Center pin 2.1mm (-) Polarity

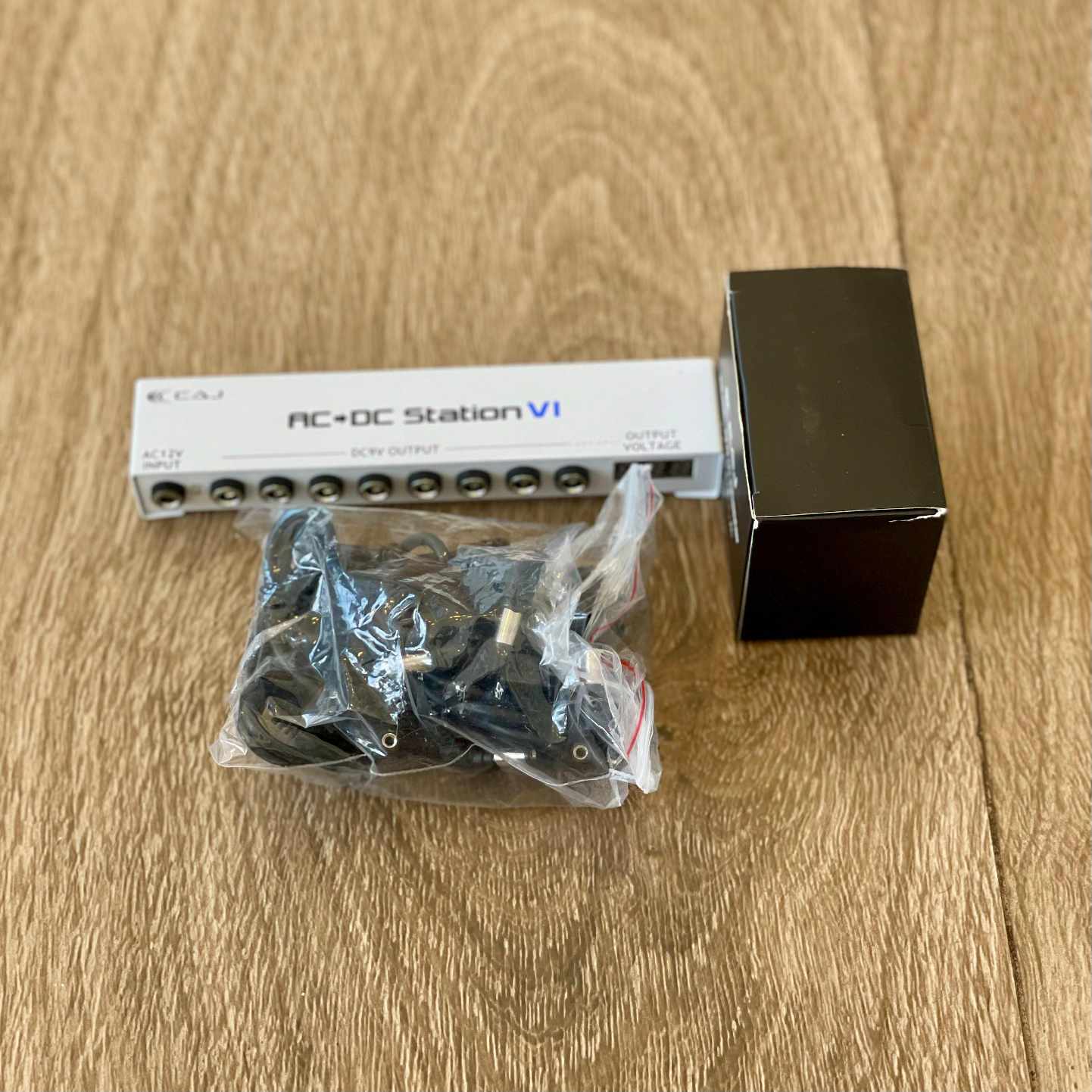

Accessories: AC adapter x 1/CAJ DC Cable 2.1 x 8
